GIS digital supply transforms infrastructure framework

Aecom explains how GIS digital supply has elevated collaboration and decreased prices on Scottish Water tasks

As a data-driven business, one of many key enablers to profitable implementation and take up of latest digital workflows is making certain that customers really feel they get two advantages – velocity and ease.

Attaining easier and sooner venture supply, with no compromise on high quality and well being and security, are two of the goals driving Caledonia Water Alliance (CWA), a three way partnership between AECOM and Morrison Water Companies. CWA works on a number of tasks per 12 months for Scottish Water in its position to assist the supply of the shopper’s water and wastewater infrastructure aspect of its capital funding programme.

Constructing Info Modelling (BIM) compliance and digital supply are a vastly necessary a part of the work, and the crew has now began to see the rewards of taking its digital method additional via the usage of GIS digital supply.

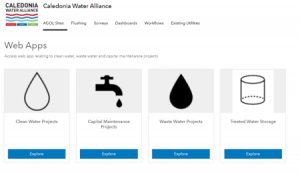

cwa web apps

GIS and BIM information have been built-in right into a single internet viewer

Working collaboratively, the crew drove the implementation of CWA’s BIM processes, ArcGIS On-line, ArcGIS Area Maps and ArcGIS Professional, and took the native integration steps to incorporate Autodesk expertise, that means that GIS and BIM information have now been built-in right into a single internet viewer.

The result’s that every one tasks on the six-year framework have entry to a venture ArcGIS On-line (AGOL) website, which may host venture data throughout all disciplines. Design information, Scottish Water belongings, website surveys and pictures, land liaison data, building and as-built data can all feed right into a venture’s ArcGIS On-line website. The knowledge will be seen by way of the net utilizing a laptop computer, pill or telephone.

As soon as a venture AGOL website has been created, there’s a typical set of data which is robotically included within the venture’s map, equivalent to present purchasers’ belongings, present SGN information, Scotland Nationwide Heritage protected websites, Historic Atmosphere Scotland websites, BGS Geology and Boreholes and Coal Authority data.

Design content material or extra third-party content material will also be printed to the venture AGOL website. This data consists of proposed alignments and placement of valves and manholes (from Civil 3D), proposed plan layouts (location of pumping stations, DSRs), SI data and present land proprietor data.

Challenge AGOL websites even have Editor Instruments for customers to manually add data to the positioning. The intention of the developed instruments is to assist create proposed routes earlier than requesting extra sources to create drawings. The define designs created on the AGOL will be consumed straight into Civil 3D after which be developed to Detailed Design.

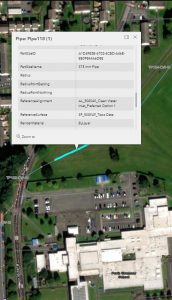

Civil 3D content in GISLowering time and enhancing accessibility

The AGOL websites have how introduced confirmed efficiencies. They guarantee present constraint data is immediately accessible and it reduces the time taken to collate data. It has improved tasks so that they develop faster and ensures all tasks are utilizing constant information.

For each the JV companions and the shopper, collaboration has elevated. All events can entry information extra simply and fewer useful resource is required as the necessity for guide dealing with of information is decreased. As well as, the supply course of is sped up as some conventional drawings, such because the as-built drawings, are now not wanted – all the info is within the GIS setting and now consumed robotically by the shopper.

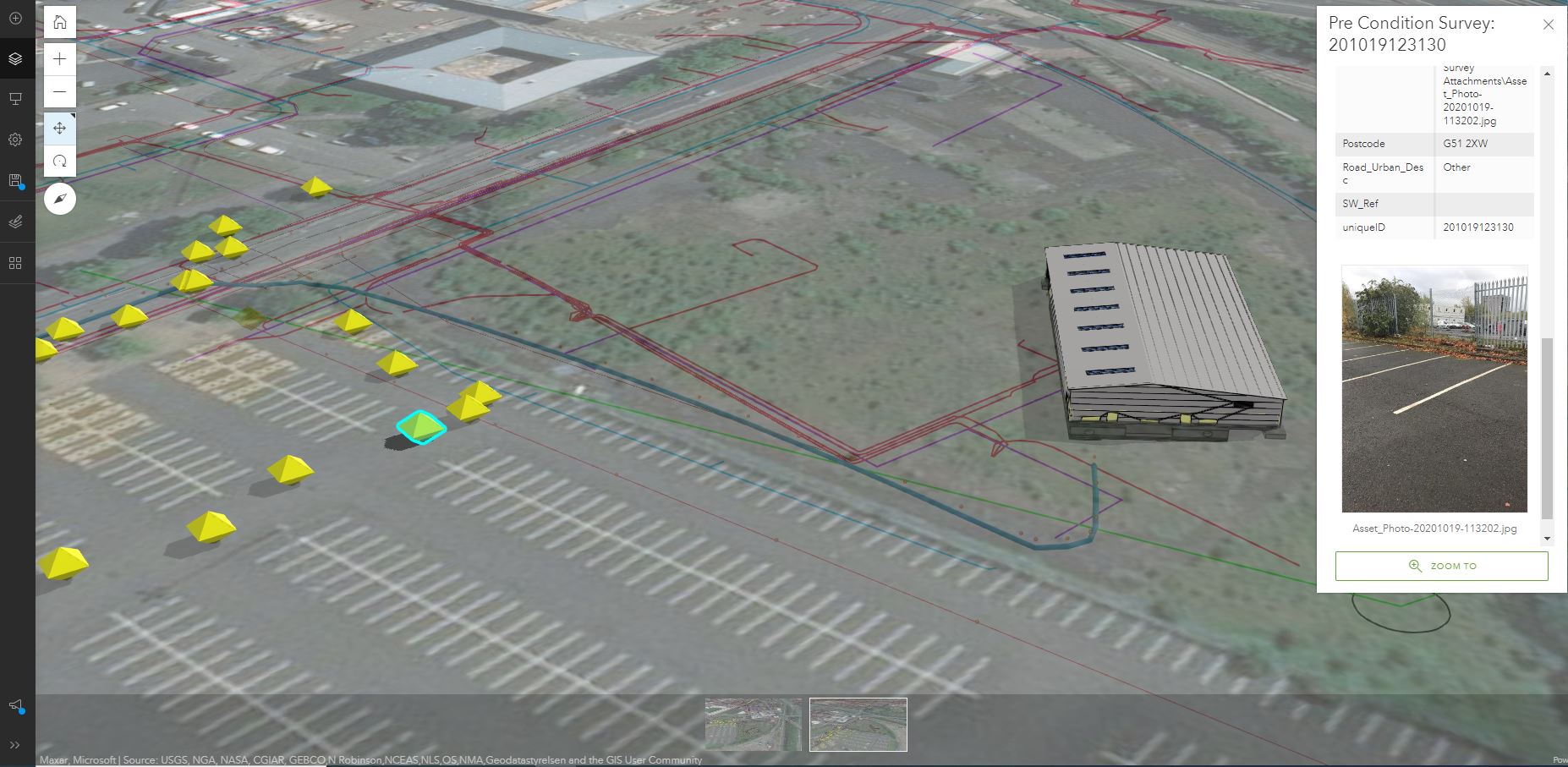

On website, the GIS digital supply additionally brings advantages. Groups now use ArcGIS apps to finish surveys and examine GIS information whereas on website. All surveys and information assortment are printed to the tasks AGOL website. As soon as the info has been captured, dashboards will be customised to view the info. Dwell building progress is now being reported by integrating venture information with PowerBI. Day by day monitoring is now being seen by the planning crew, eradicating guide updates required by the positioning crew.

ArcGIS Survey123 is a straightforward and intuitive form-centric information gathering answer enabling customers to create, share and analyse surveys and share throughout tasks.

ArcGIS Area Maps is an all-in-one app that makes use of data-driven maps to assist cellular staff carry out information assortment and modifying, discover belongings and data, and report their real-time places. ArcGIS Area Maps streamlines the important workflows area personnel use daily. As a result of it’s constructed on ArcGIS, everybody – whether or not within the area or the workplace – will profit from utilizing the identical information.

Building processes have seen main advantages from digital transformation

For the reason that introduction of GIS during the last 12 months, design, building, well being and security, land liaison, planning, buyer and performances at the moment are benefiting from the digital transformation. CWA now has over 100 customers from viewers to area staff accessing and recording digital content material, over 9,000 digital surveys have been accomplished and the shopper has entry to view venture content material and eat information. The tradition of manufacturing and sharing venture data continues to evolve all through the remaining of the six-year framework.
